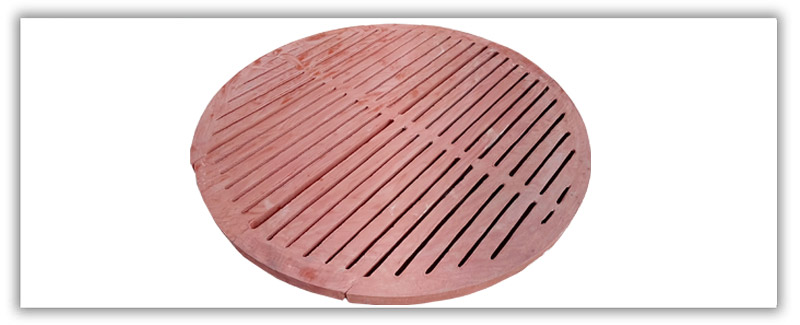

ROUND JALI dis is the most conventional form of grates used in boiler. Generally used in small boilers, and wherein wood is used as fuel. They are available in two or four part, which are make a complete round. Different sizes along wif different chemical compositions are available.

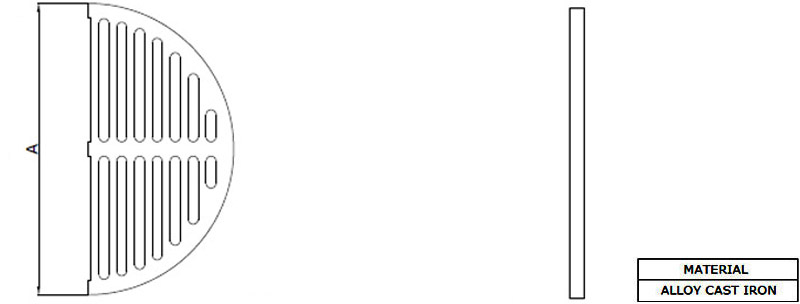

DIMENSION IN MM | |
SR NO | A |
J1 | 740 |
J2 | 1100 |
J3 | 800 |
J4 | 680 |
J5 | 720 |
J6 | 900 |
J7 | 1000 |

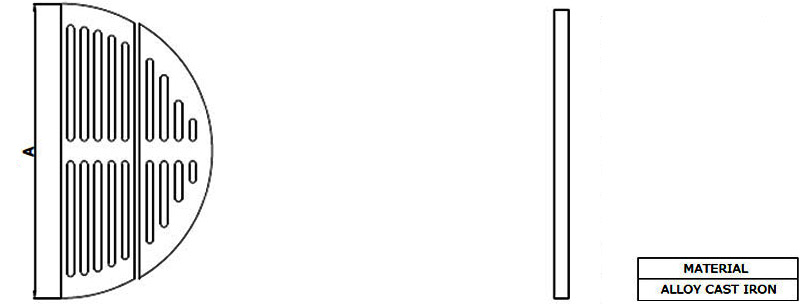

DIMENSION IN MM | |
SR NO | A1 |
J8 | 490 |
J9 | 530 |
