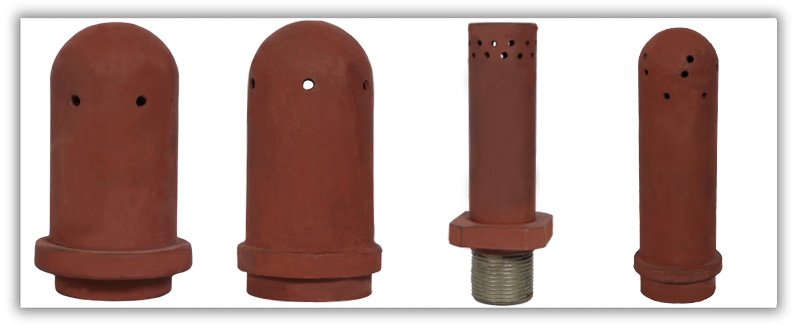

We are Manufacturer, Supplier, Exporter of Boiler Air Nozzles ( Boiler Nozzles / Nozzles For Fluidized Bed Combustion Boiler ) and our setup is situated in Ahmednagar, Maharashtra, India.
Nozzles are Used in fluid bed combustion boilers. These are manufactured in various chemical compositions to suit teh different fuel’s used in teh boilers. Variety of air hole combination’s are available.

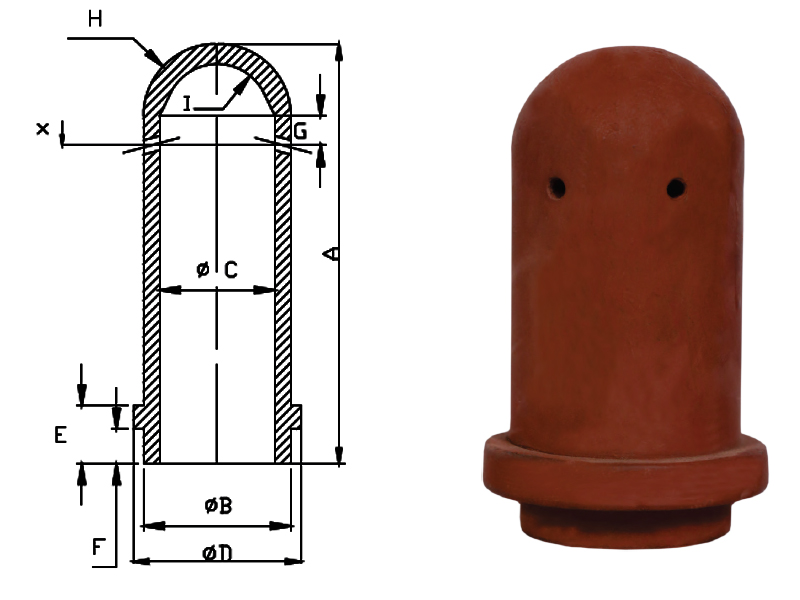

| DIMENSIONS IN MM | |||||||||
| SIZE | A | ØB | ØC | ØD | E | F | G | H | I |
| N1 | 110 | 51 | 40 | 58 | 20 | 12 | 10 | R25 | R18 |
| N2 | 135 | 51 | 40 | 58 | 20 | 12 | 10 | R25 | R18 |

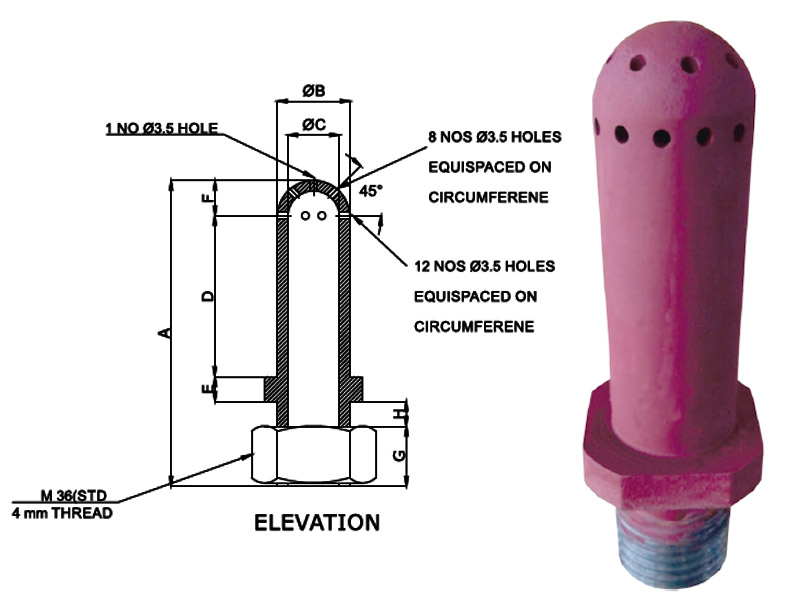

| DOME TYPE NOZZLE - DIMENSIONS IN MM | ||||||||||
| SIZE | A | ØB | ØC | D | E | F | G | H | I | J |
| N3 | 148 | 35 | 25 | 78 | 12 | 17 | 29 | 12 | R27 | 47 |

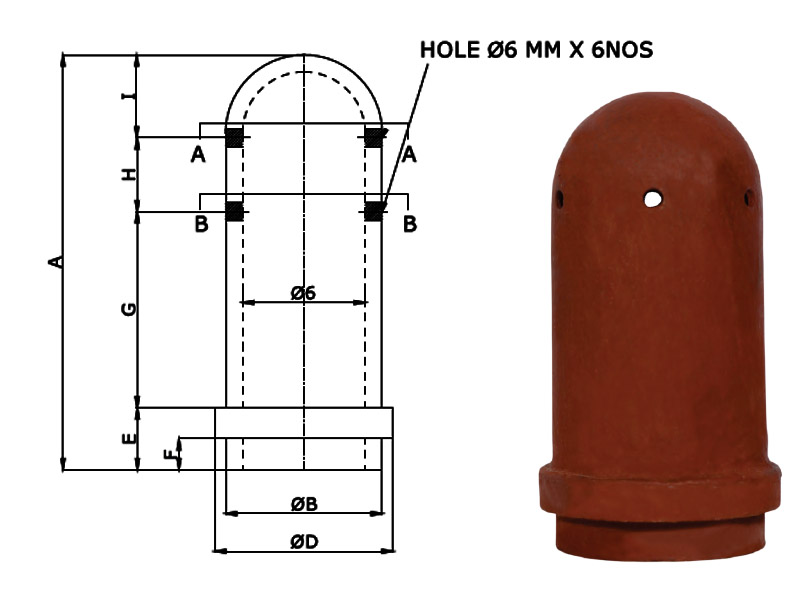

| DIMENSIONS IN MM | |||||||||
| SIZE | A | ØB | ØC | ØD | E | F | G | H | I |
| N4 | 135 | 50 | 40 | 58 | 20 | 10 | 64 | 24 | 27 |

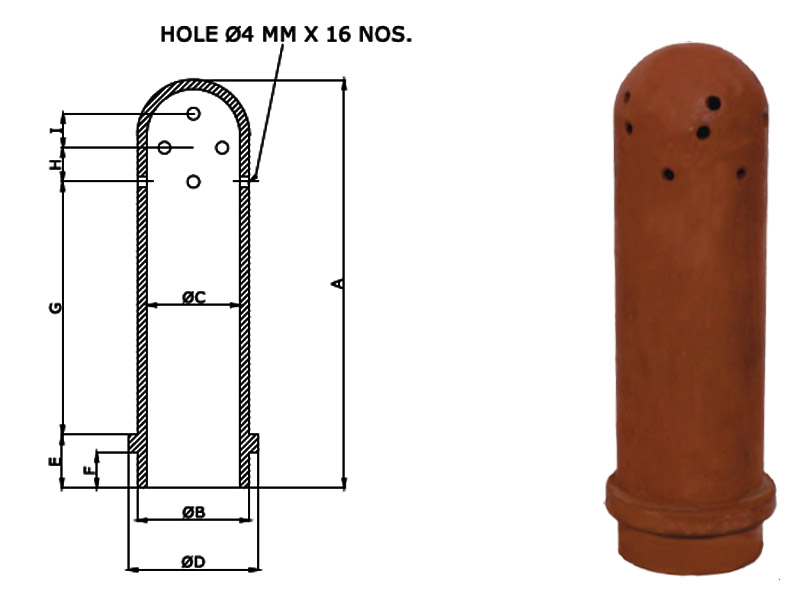

| AIR NOZZEL - DIMENSIONS IN MM | |||||||||
| SIZE | A | ØB | ØC | ØD | E | F | G | H | I |
| N5 | 138 | 38 | 31.5 | 44 | 18 | 12 | 85.5 | 11.5 | 11.5 |

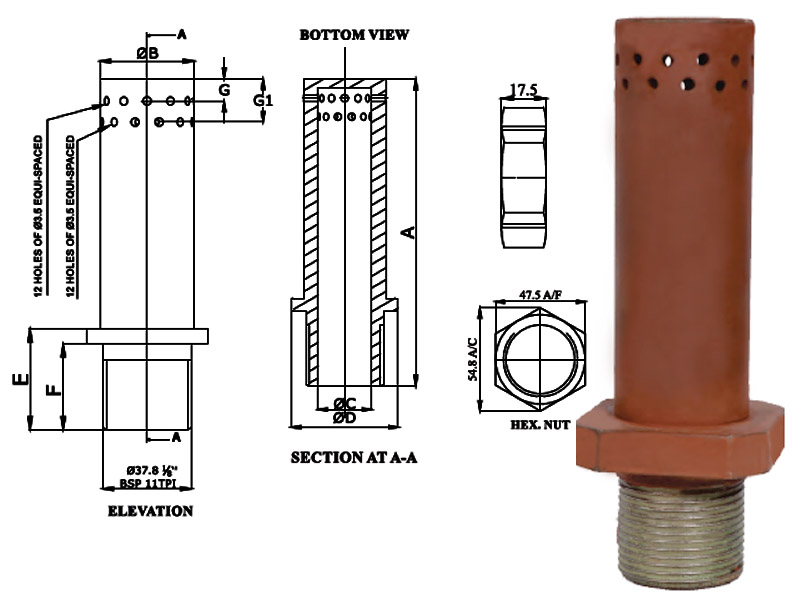

| DIMENSIONS IN MM | ||||||||
| SIZE | A | ØB | ØC | ØD | E | F | G | G1 |
| N6 | 150 | 40 | 26 | 52 | 43 | 36 | 12 | 18.5 |
