We are Manufacturer, Supplier, Exporter of Furnace Doors ( Boiler Fire Doors ) and our setup is situated in Ahmednagar, Maharashtra, India.

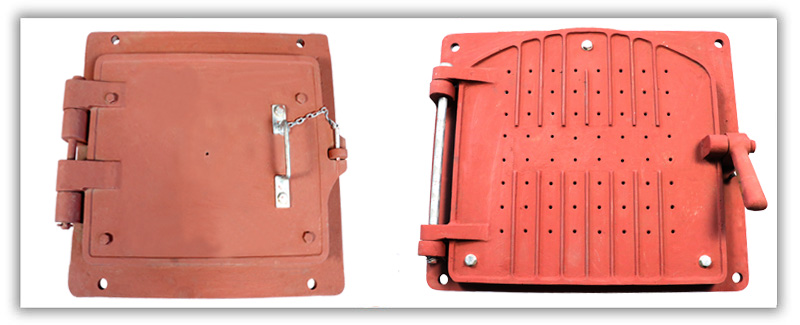

These doors are fitted in the boiler where the fuel is fired manually. They also work as air inlets for the boilers. Wherein F.D fans are not fitted. The selection of the doors size is based on different kind of fuel used on the boiler. These doors are available in various size and shape
| DIMENSIONS IN MM | |||||||||
| SR NO | A | B | C | D | E | F | G | H | REMARKS |
| D1 | 540 | 630 | 563 | 543 | 538 | 690 | 561 | 600 | |
| D2 | 375 | 480 | 416 | 393 | 373 | 540 | 396 | 435 | |
| D3 | 375 | 480 | 416 | 393 | 373 | 540 | 396 | 435 | |
| D4 | 540 | 480 | 416 | 393 | 538 | 540 | 561 | 600 | |
| D7 | 540 | 630 | 563 | 543 | 538 | 690 | 561 | 600 | WITH PEEP HOLE |
| D8 | 375 | 480 | 416 | 393 | 373 | 540 | 396 | 435 | WITH PEEP HOLE |
| DIMENSIONS IN MM | |||||||||
| SR NO | A | B | C | D | E | F | G | H | REMARKS |
| D5 | 540 | 480 | 540 | 507 | 402 | 640 | 435 | 610 | FIRE DOOR |
| D6 | 375 | 480 | 430 | 403 | 273 | 640 | 300 | 425 | ASH DOOR |
| DIMENSIONS IN MM | |||||||||
| SR NO | A | B | C | D | E | F | G | H | REMARKS |
| D9 | 484 | 514 | 454 | 422 | 372 | 604 | 404 | 534 | WITH PEEP HOLE |
| DIMENSIONS IN MM | |||||||||
| SR NO | A | B | C | D | E | F | G | H | REMARKS |
| D10 | 480 | 440 | 420 | 550 | 420 | 55 | 530 | 25 | WITH PEEP HOLE |
| DIMENSIONS IN MM | ||||||||||
| SR NO | A | B | C | D | E | F | G | H | I | REMARKS |
| D11 | 738 | 570 | 460 | 418 | 588 | 610 | 630 | 780 | 137 | |
| DIMENSIONS IN MM | ||||||||||
| SR NO | A | B | C | D | E | F | G | H | I | REMARKS |
| D12 | 438 | 570 | 460 | 418 | 288 | 610 | 330 | 480 | 137 | |
